Twisted Skyscrapers Around The World

One of the latest design trends that seems to have found appeal among some architects is a towering skyscraper that twists its way up to the top. Possibly the first, modern, twisted skyscraper constructed was the Turning Torso in Malmö, Sweden. The residential building is constructed in nine segments of five-story pentagons that twist as it rises, with the topmost segment twisted 90 degrees with respect to the ground floor. The construction of this building was featured on Discovery Channel's "Extreme Engineering" TV program. The tower received some more publicity when on 18 August 2006, Austrian skydiver Felix Baumgartner jumped off it and parachuted to the ground. After the successful completion of the Turning Torso, designers started proposing similar audacious structures elsewhere. Many projects got shelved, others were passed and built, and a handful of them are currently under construction. Here we explore some of the most twisted skyscraper designs around the world, but first, a few pictures of the tower that started it all.

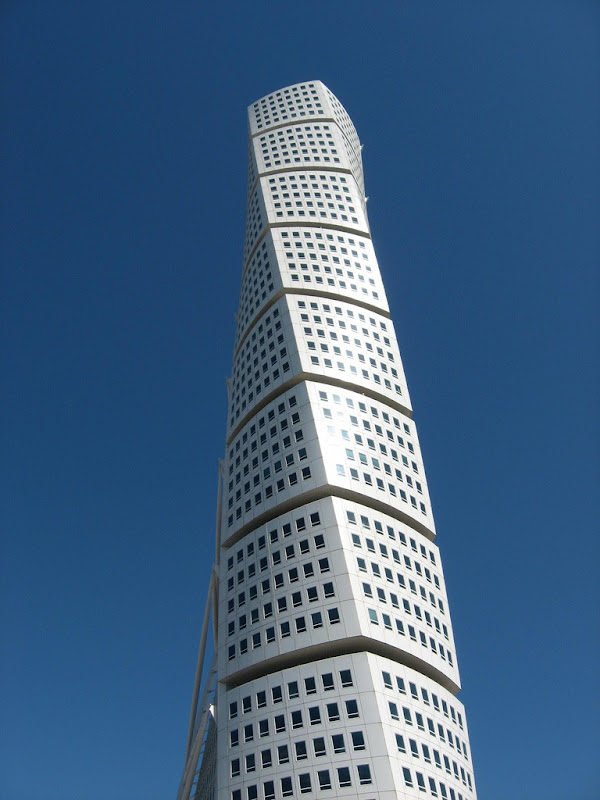

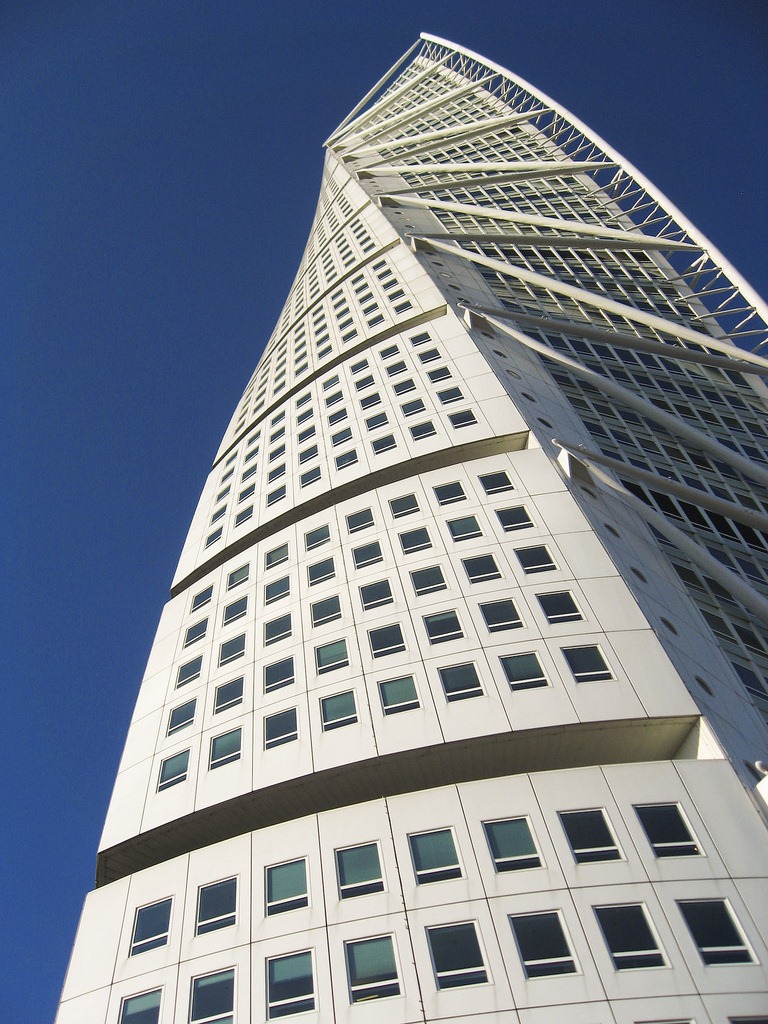

Turning Torso, Malmo, Sweden

The project was designed by the Spanish architect Santiago Calatrava and officially opened on 27 August 2005. The tower reaches a height of 190 metres (623 feet) with 54 stories - 147 apartments, relax/lounge/spa, wine cellar followed by around-the-clock Concierge service 365 days a year. Each floor consists of an irregular pentagonal shape rotating around the vertical core, which is supported by an exterior steel framework. Completed in 2005, the Turning Torso is the tallest skyscraper in Sweden and all the Nordic countries, and presently the third tallest residential building in Europe.

Photo credit

Photo credit

Photo credit

Photo credit

Infinity Tower, Dubai

Infinity Tower is 306 metres (1,004 ft) tall and consist of 76 storey skyscraper and under construction in Dubai, United Arab Emirates, which when completed, will become the world's tallest high rise building with a twist of 90˚. The tower is designed by Skidmore, Owings and Merrill SOM architectural group, the same group who built the Burj Khalifa also in Dubai and Trump Tower in Chicago.
Construction of the building began in February 2006 and by 2012, the intended height was reached. Unlike the Turning Torso, which is a series of cantilevered plates rotated about a straight structure, Infinity Tower's much larger floor plates actually require the structure to be twisted as it raises from level to level. Each floor is rotated by 1.2˚ to achieve the full 90˚ spiral, creating the shape of a helix. The tower will have residential apartments, conference rooms, tennis courts, pools, a state of the art gymnasium, a nursery and a spa.

Photo credit

Photo credit

Photo credit

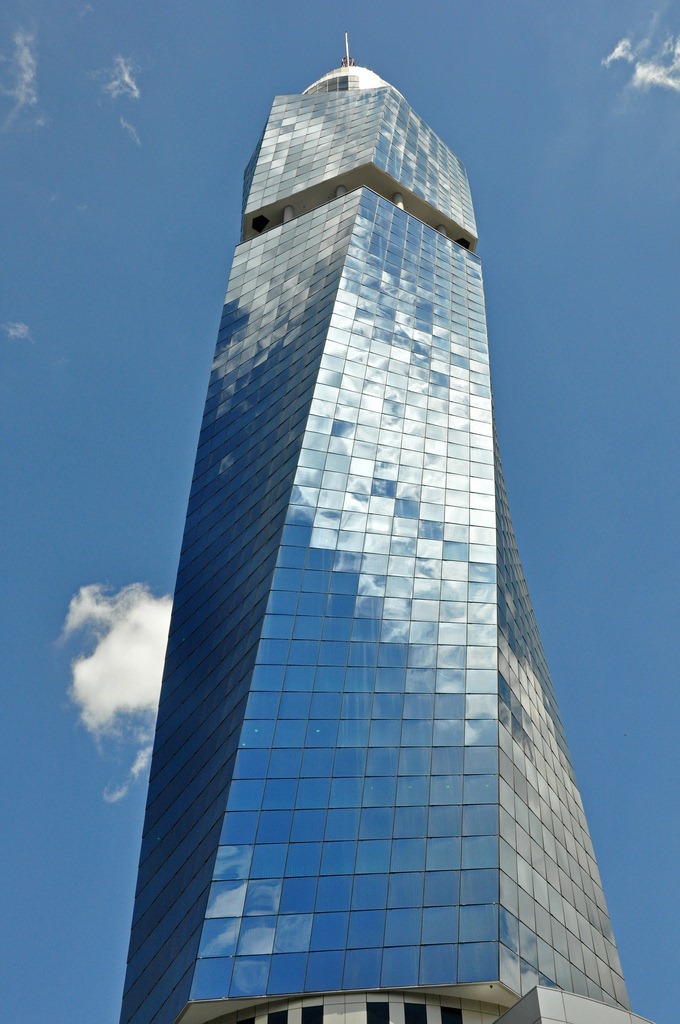

Avaz Twist Tower, Sarajevo

The Avaz Twist Tower is a 176 m tall skyscraper within Sarajevo, Bosnia and Herzegovina, with a twisted facade. Not a dramatic 90-degree twist, but a head turner anyways. It is the headquarters for Dnevni avaz, a Bosnia and Herzegovina newspaper company.

Photo credit

Photo credit

Absolute World Towers, Mississauga, Canada

Absolute World is a residential twin tower skyscraper complex in Mississauga, Ontario. One is 179 meters tall while the other stands at 161 meter. Both tower twist 209 degrees from the base to the top. The building has been nicknamed the "Marilyn Monroe" tower due to its curvaceous, hourglass figure likened to actress Marilyn Monroe.




Pictures courtesy: Designboom

Kuwait Trade Center

Kuwait Trade Center, also known as Al Tijaria Tower, is a magnificent 218 meter tall tower in Kuwait City and currently the tallest building in Kuwait.

Photo credit

Photo credit

Revolution Tower, Panama City

The Revolution Tower is a controversial “corkscrew” tower complex of modern offices in Panama City, just a few minutes away from the banking center. The 242-meter reinforced concrete tower consist of 52 floors and makes a 360 degree turn as it rises up.

Photo credit

Photo credit

Hadid Tower, Milan

A ‘twisted’ tower designed by Zaha Hadid Architects (ZHA) is currently under construction in Milan, Italy. Forming part of the CityLife Milano masterplan, and situated in the city’s historic Fiera district, The LEED Gold certified Hadid Tower (Torre Hadid) will be 170m high with 44 floors. Containing both commercial and office space, with a shopping area which connects to the metro station, the Hadid Tower is being built alongside the 220m Arata Isozaki & AssociatesTower (‘the straight one’) and the 150m Daniel Libeskind Tower (‘the curved one’).
The following images are computer renders depicting how the towers will look once completed. Actual pictures of the tower, which is still being built, is not available.

Evolution Tower, Moscow

The Evolution Tower in Moscow is currently under construction as part of the Moscow International Business Center. Each floor will be twisted 3° in relation to the preceding one, totaling 135° when it reaches the top. Construction of the tower began in 2007, and was planned to be completed in 2013. As of April 2013 they are working on the 42th floor of the building. The tower is designed by architect Tony Kettle.

The above is a computer render. Actual construction pictures below. Photo credits

Gehry Tower, Hanover

Gehry Tower is a nine-story building located at the Steintor, Goethestraße 13a, in Hanover, Germany, constructed by the renowned architect Frank Gehry. Constructed of stainless steel, the tower is memorable for the noticeable twist in its outer façade. The building was commissioned by the city-owned Hanover Transport Services for whom Gehry also designed a bus stop in the city.

Photo credit

Photo credit

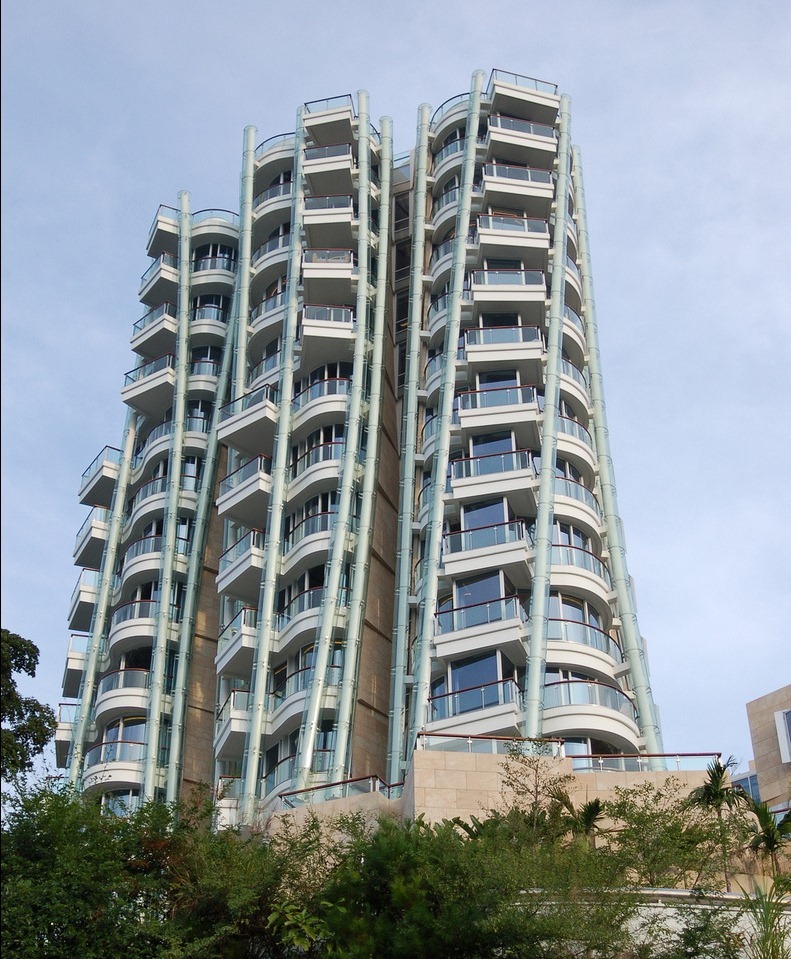

Opus Hong Kong

Opus Hong Kong is another twisted building designed by Frank Gehry and developed by Swire Properties. The building consists of 12 residential units including two duplexes with pools, underground parking, swimming pools, gyms, rainwater recycling for irrigation, and electric car charge systems.

Photo credit

Photo credit

Photo credit

Mode Gakuen Spiral Towers, Nagoya

Mode Gakuen Spiral Towers is a 170-meter, 36-storey educational facility located located on a busy main street of Nagoya City in front of Nagoya Station in Nakamura-ku, Nagoya, Aichi, Japan. The towers' wing-like shape, narrow at the top, changes the rotation axis as they rise and create an organic curve. Spiral Towers appears to change shape slightly when viewed from different angles, giving an elegant yet dynamic impression. The strong inner truss tube is visible through gaps between the three wings, highlighting the bold design and structure while demonstrating the overall consistency.
The towers are highlighted with many ecological features, such as a double-glassed air flow window system and a natural air ventilation system.

Photo credit

Photo credit

Photo credit
